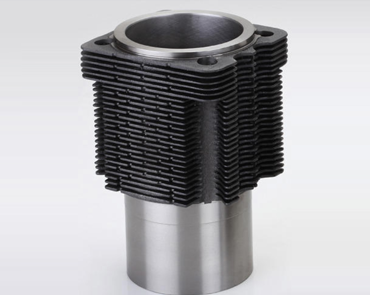

Cylinder Liners & Sleeves, Air Cooled Block Manufacturer
- Precision machining of centrifugally cast cylinder liner liners and sleeves.
- Material specification is FG220/ASTM, with chromium and nickel elements
- Each batch’s microstructure and chemical composition are analysed.
- Beautiful Plateau Cylinder liner bore has been honed.
- Geometrical parameters can be saved using Cylindrical Grinning.
- Inspect the honing angle and the structure of the cylinder liners at random.
- Tensile strength and profiles are generated at random.
- 100% Dimensional examination of completed cylinder liners.
- Cylinder liners have a monthly production capacity of 30000 pieces.
- We manufacture over 500 different models of cylinder liners for trucks, tractors, and automobiles worldwide.
- Cast Iron Cylinder Liner
- Wet Cylinder Liner
- Dry Cylinder Liner
- Phosphate Coating Liner
- Chromard Cylinder Liner
- Air Cooled Cylinder Liner
- Water Cooled Cylinder Liner
- Finned Cylinder Liner
Range, Specifications & Other Details
Production Capacity
50000 pieces per month
Product Range
- Cast Iron Cylinder Liner
- Wet Cylinder Liner
- Dry Cylinder Liner
- Photostatted Cylinder Liner
- Cromard Cylinder Liner
- Air Cooled Cylinder Liner
- Water Cooled Cylinder Liner
- Finned Cylinder Liner
Finishes
Semi-finished & Fully-finished
Product Specifications
| Dimension | Range (in mm) |
|---|---|
| Bore Diameter | 55 to 200 |
| Outer Diameter | 60 to 230 |
| Total Length | 110 to 300 |
Technical Specifications
| Material specification standards | |
|---|---|
| India | IS-FG 220 |
| Europe | GG20, GG25, GG30 |
| American | ASTM, A48 |
Micro Structure
Graphite type: “A” & “B” (“D” & “E” Random)
Flake Size: 4-6 Microns
Free Ferrite: Less Than 5%
Matrix: Lamellar Pearline
| Chemical Composition | Minimum | Maximum |
|---|---|---|
| Carbon | 2.90 | 3.50 |
| Silicon | 1.80 | 2.50 |
| Manganese | 0.6 | 1.00 |
| Phosphorus | 0.20 | 0.50 |
| Sulfur | 0.00 | 0.12 |
Note: Also we can add cast material compositions using Chromium, Molybdenum, Nickel, Cooper as per customer specifications meeting to international standards.
| Hardness (BHN) | 210 to 280 |
| Tensile (BHN) | 210 to 280 n/mm2 |
From India to the World!
Quintess International, is a leading exporter of Automotive Spare Parts from India and a well-known name brand in more than 80+ countries known for its end-to-end offerings of Genuine and Aftermarket Spare Parts provided at a very competitive price. Our products include complete range of genuine spare parts for all CARS , LCV , HCV , 2W/3W and TRACTORS made in India. We are a trading company which is involved in export of spare parts of Suzuki , Hyundai genuine parts, tata , Mahindra , Ashok Leyland , Kia , Nissan , Renault , Fiat , Ford , Volkswagen . Also we supply the Aftermarket brands such as Schaeffler (Luk , Fag ) , Mando , Valeo , Bosch , Lumax , Mann Filters , Hyundai Xteer , Ngk , Wabco , Zf etc
Applications
| ACME | CHRYSLER | GUILDNER | KUBOTA | OPEL | TOYOTA |
| AGRALE | CITROEN | HATZ | LADA | PEGASO | TRIUMPH |
| AIREO | COMET | HELWAN | LANDROVER | PETTER | URSUS TRACTOR |
| AJIT | CUMMINS | HERCULES MOTOR | LEYLAND | PEUGEOT | VALMET TRACTOR |
| ALLIS CHALMERS | DACIA | HINDUSTAN | LIAZ | PORSCHE | VAZ |
| ANDORIA | DAEWOO | HINO | LISTER | R.V.I. | VOLKSWAGEN |
| ASAA | DAF | HONDA | LOMBARDINI | RENAULT | VOLVO |
| ASIA | DAIHATSU | HYUNDAI | MACK | ROBSON | WABCO |
| ATLAS COPCO | DAIYONG | IFA | MAHINDRA | ROCKET | WESTINGHOUSE |
| AUDI | DAVID BROWN | IMT | MAN | ROVER | YAMAHA |
| AUSTIN | DENIS JONES | INTERNATIONAL (IHC) | MARUTI | RUMANIA | YANMAR |
| B.M.C | DETROIT | ISUZU | MASSEY FERGUSON / PERKINS | RUSSIAN | ZETOR |
| BAJAJ | DEUTZ | JAGUAR | MAXION | RUSSIAN BELARUS | US |
| BAUDOUIN | DODGE | JENBACH | MAZ/KRAZ | RUSTON | |
| BEDFORD | DONGFENG | JIANG DONG | MAZDA | SAMCO | |
| BERLIET | DORMAN | JINMAR | MERCEDES | SAVIEM | |
| BERNARD | EICHER | JOHN DEERE | MG | SCANIA | |
| BLACKSTONE | EKM | KAMAZ | MITSUBISHI | SENDLING | |
| BOLINDER MUNKTELL | FIAT | KAWASAKI | MOBYLETTE | SHIBAURA | |
| BORGWARD | FIAT IVECO | KELVIN | MWM | SIFENG | |
| BUKH | FORD | KIA | MYCOM | SKODA | |
| CADILLAC | FORTSCHRITT TRACTOR | KIRLOSKAR | NAVISTAR | SLAVIA | |
| CASE | GARDNER | KNORR-BREMSE | NEW HOLLAND | STEYR | |
| CATERPILLAR | GMC | KOMATSU | NISSAN/DATSUN | SUZUKI | |
| CHAI HAI | GONGDONG | KRONHOUT | NORDA | TORPEDO |
